3D MODEL DESCRIPTION
When you turn on the light, its antlers show on the wall. It’s very aMoosing!

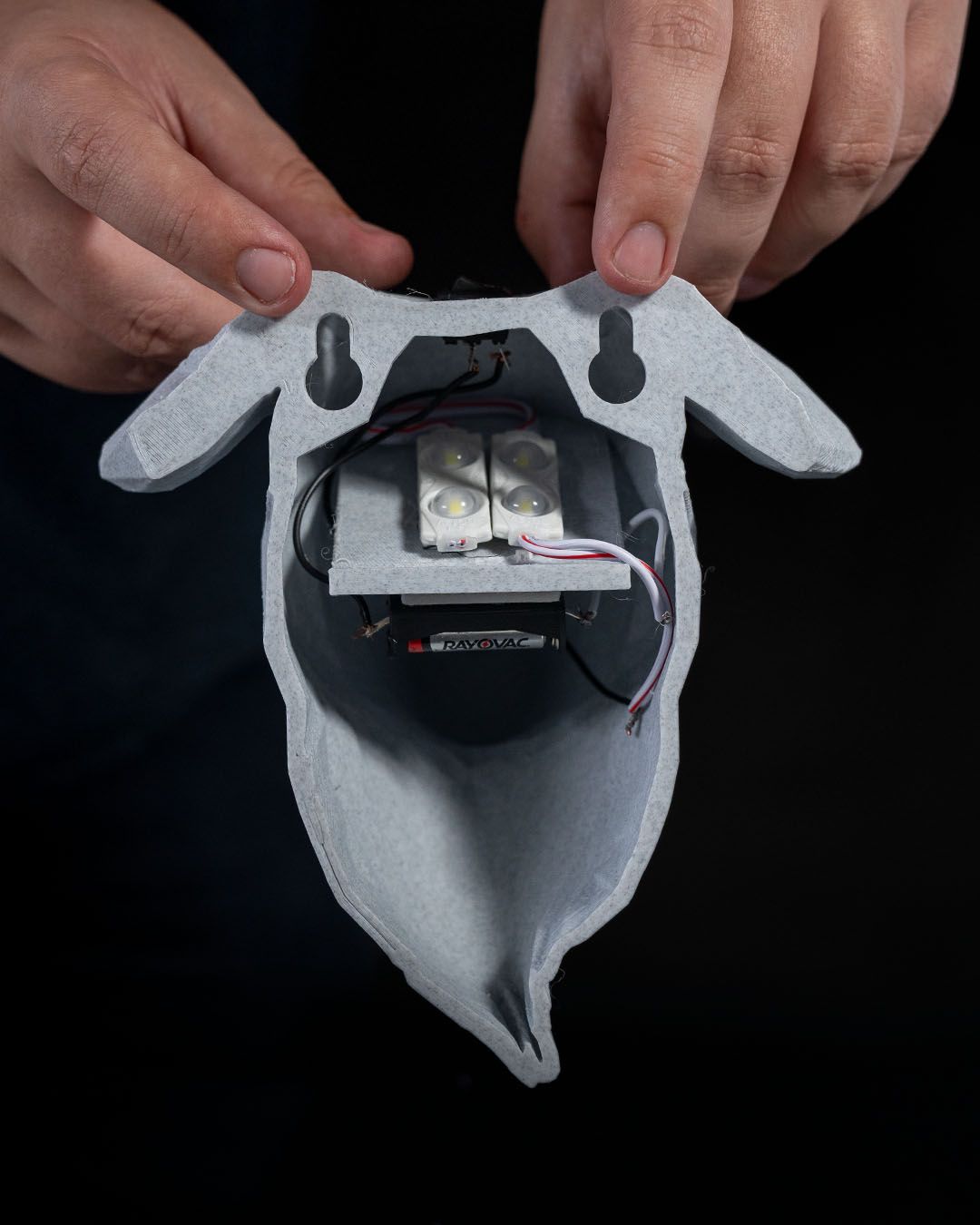

Your High Elk requires some assembly. Follow the instructions on the Readme file!
What you’ll need:
Printed light LED Module
Battery Holder 12V
On-Off Switch
Solder
Soldering Iron
Electric Wire
- This STL file is recommended for FDM Printers!
- 3D Printing Time: 20 Hours 23 Minutes
-
Approximately Height : 18,5 cm
3D PRINT FILE SETTINGS (FOR 0.4 MM NOZZLE)
- Line Width/ Nozzle: 0.4 mm
- First Layer Line Width: 0.48 mm / 120%
- Average Speed: 20mm/s (First Layer) / 50mm/s (All the other layers)
- Recommended Initial Layer Height: 0.20 mm
- Recommended Layer Height: 0.20 mm
- Recommended Perimeters/ Walls: 3.
- Recommended Infill (%): 10% (Gyroid)
- Needs Support: We have printed ours without supports (note that if you choose to print this way, the inside of your print will have poor finishing. You can always use supports to make your print better)
- Build Plate Adhesion: Skirt.
The parameters above are recommendations made by our staff; if you prefer, you can adapt them according to your preferences.
Happy Printing!
